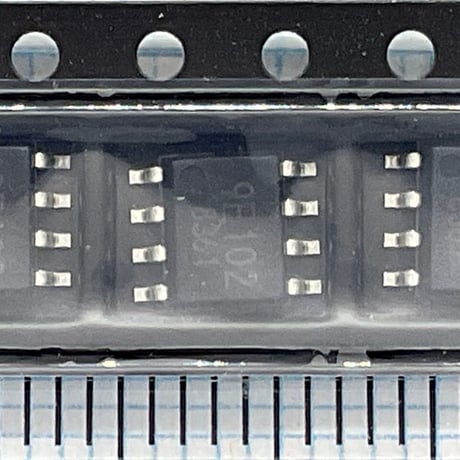

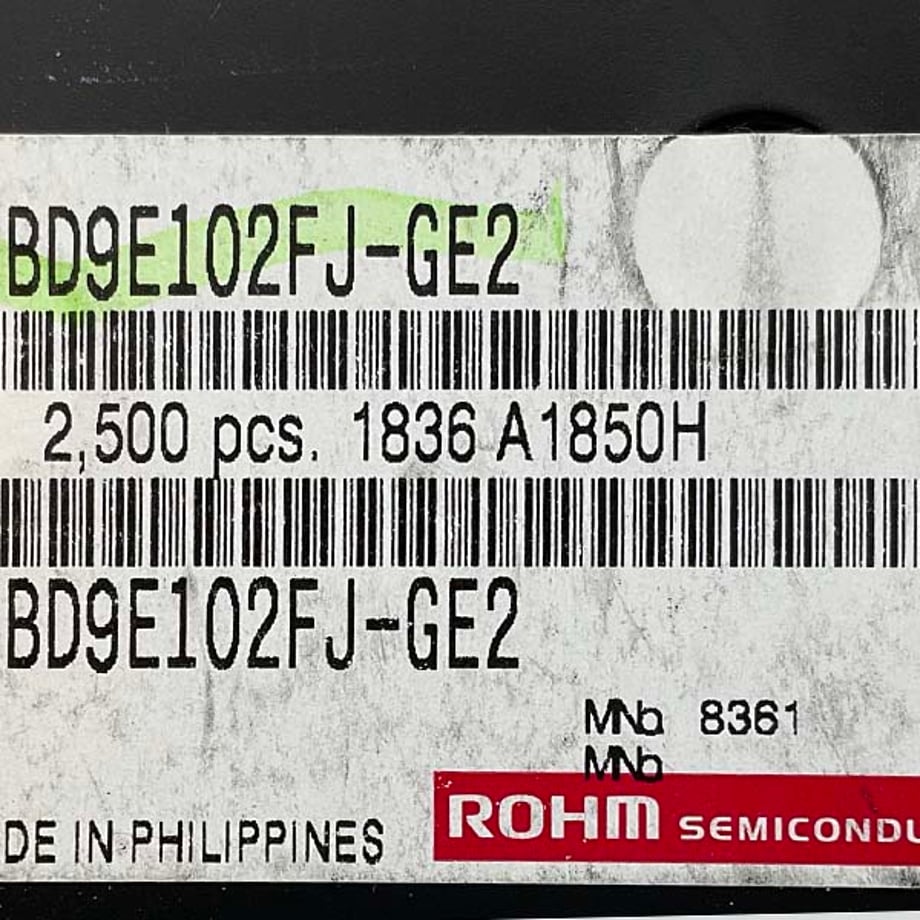

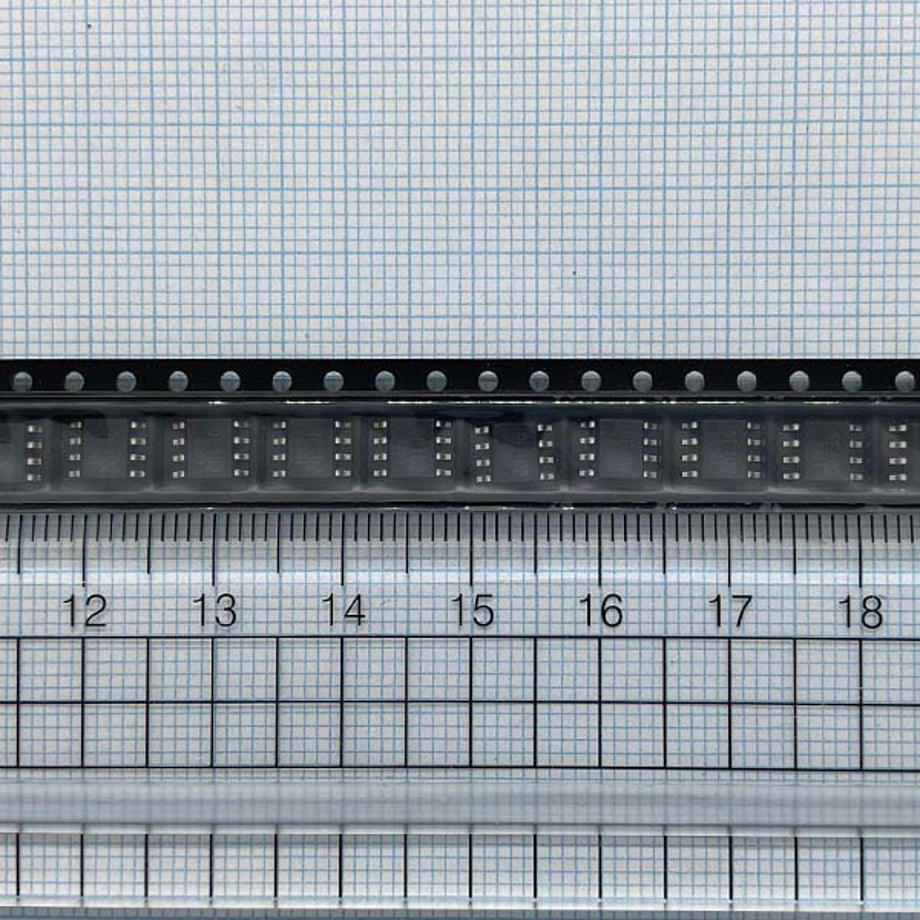

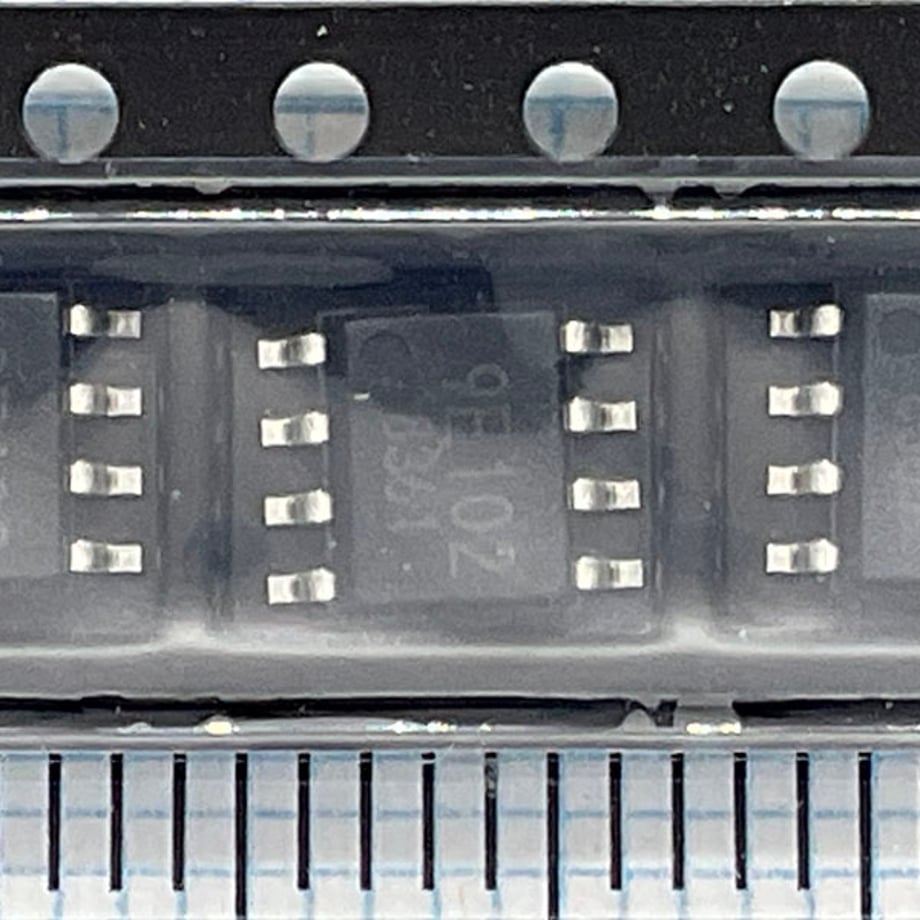

DC/DCスイッチングレギュレータIC BD9E102FJ-GE2 The BD9E102FJ is a synchronous buck switching regulator with low on-resistance built-in power MOSFETs. High efficiency at light load with a SLLMTM. It is most suitable for use in the equipment to reduce the standby power is required. It is a current mode control DC/DC converter and features high-speed transient response. Phase compensation can also be set easily. 特徴 　・ Synchronous single DC/DC converter 　・ SLLMTM control (Simple Light Load Mode) 　・ Efficiency = 80% (@IOUT=10mA) 　・ Over current protection 　・ Short circuit protection 　・ Thermal shutdown protection 　・ Undervoltage lockout protection 　・ Soft start 　・ Reduce external diode 　・ SOP-J8 package キースペック 　・ Input voltage range: 7.0V to 26V 　・ Adjustable output voltage range: 1.0V to VIN x 0.7V 　・ Maximum output current: 1.0 A (Max.) 　・ Switching frequency: 570 kHz (Typ.) 　・ High-Side MOSFET on-resistance: 250 mΩ (Typ.) 　・ Low-Side MOSFET on-resistance: 200 mΩ (Typ.) 　・ Shutdown current: 0 μA (Typ.) ※詳細は添付のデータシートを参照ください ※26/3時点で非拡販品種になっています メーカ：　　　ローム (Rohm) パッケージ：　 SOP-J8 包装：　　　　テープ（必要数に切り分けて供給します） 販売単位：　　1個 データシートです。 https://drive.google.com/file/d/1DMxUgyzpRHTPoa2a9-oNBmp0YeP0i_wV/view?usp=sharing RL-2
